LDJ No Screen Vertical Mill

     This model is suitable for low and medium hardness materials, such as metallurgy, building materials, coal, non-metallic minerals. Also be suitable for chemical engineering, dyes, pesticides, feed.

LDJ No Screen Vertical Mill
1、Working principle
2、Equipment Characteristics
3、Technicial Paramater
4、Flowchart
1、Working principle

     This machine is a vertical non-sieve winnowing machine, all wearing parts are made from  special wear-resistant materials or hard alloy. Good wear-resistance and small particle size. Equipped with the water cooling device, which ensure the color, nature and quality of the heat-sensitive material. Good heat dissipation avoid the rise of temperature and protect the material quality. air separation device can automatically adjust the particle size.

2、Equipment Characteristics

①　The particle size is adjustable in a certain range.

②　Can compose a cool wind system: Low melting point of synthetic resin, plastic materials or heat-sensitive material.

③　This machine is collocated with 2 kinds of blades, can choose according to different materials.

④　Continuous production, high productivity, easy installation, operation,  maintenance and clearing.

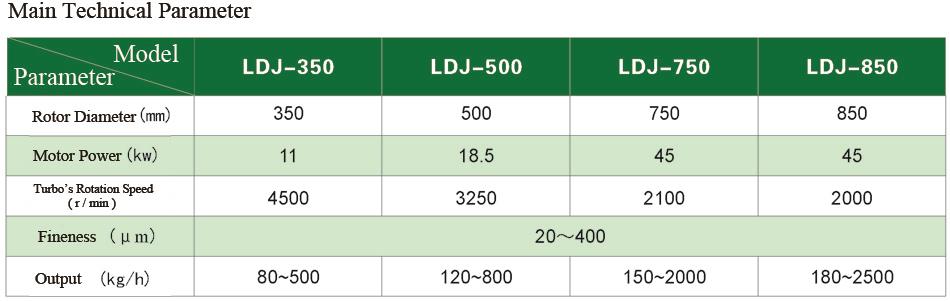

3、Technicial Paramater

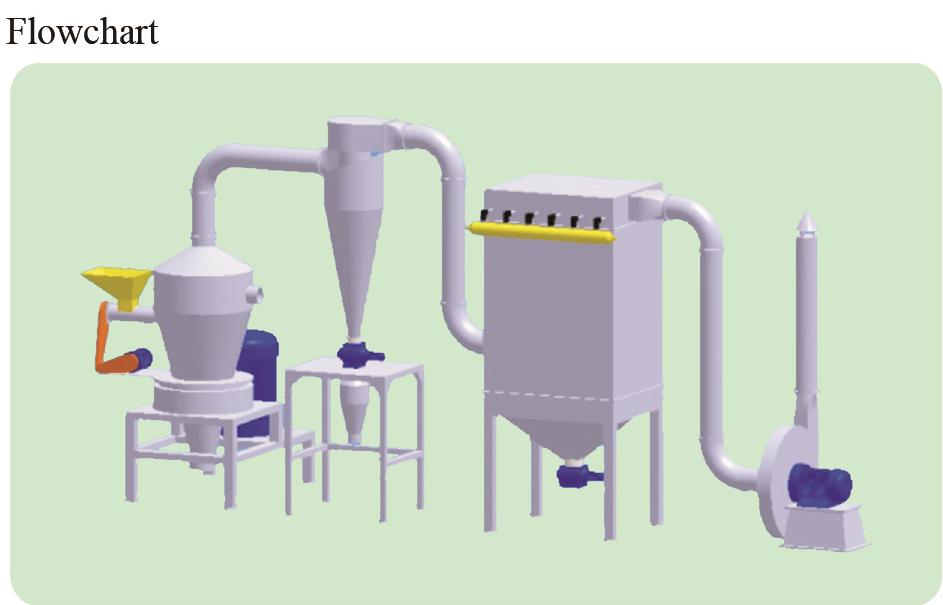

4、Flowchart
